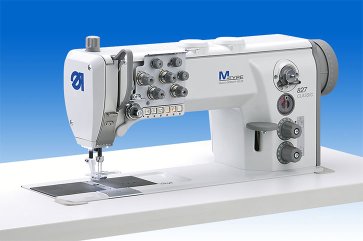

M-TYPE needle feed machine SENSITIVE – the specialist for fine materials in light to medium-heavy applications




Twin needle lockstitch machines for the processing of especially fine materials in light to medium-heavy applications for decorative topstitching applications, is equipped with thread trimmer, automatic backtacking, pneumatic presser foot lift andmanually activated 2nd thread tension.

Your advantages:

- PTFE-coated hook covers and attachment slides for a trouble-free material feed

- DLC-coated needle bars and feeding foot bars for nearly oil-free sewing

- Use of CTB bobbins for a constant bobbin thread tension

- Cylindrical braking and lifting spring for reducing the bobbin lead after manual thread pulling

- Modified sewing kinematics for perfect stitch formation in fine materials

- Sewing equipment with small needle holes and fine toothing for mark-free material transport

- Needle distances from 3,2 - 50mm can be realized




Typical field of application

Joining and topstitching operations in particularly fine materials for the Textile Industry and for medium to heavy material in the garment industry.



Performance features
• Max. stitch length 7 mm
• Max. sewing foot lift 16 mm
• Max. sewing speed 3,800 stitches/min
