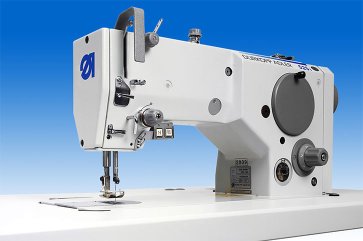

Class 525i – universal and durable





The lockstitch zigzag sewing machine class 525i with inter-changeable cams is specially designed for ornamental (shape) stitching in ready-made garment and ladies underwear made of elastic materials as well as for ornamental stitching in textile footwear.
Machine can be used for light to medium heavy weight textile and leather materials.

Your advantages
● Facelift with modern elements and actual DA design components (for stitch length, thread tension, thread control, etc.)
● Single and twin needle decorative seams with 18 available pattern cams which can be exchanged in few minutes
● New thread trimmer (CLASSIC) ensures secured cutting, now also for thick threads up to 20/3
● Modified lubrication and a reservoir in the machine arm reduces maintenance, guarantees the correct lubrication doses, protects the hook against wear
● Optimized thread trimming system with adjustable bobbin break spring (CLASSIC) for better stitching results
● New needle thread tension regulation for more precise tension adjustment
● Optimized bobbin winder with easier adjustment of max. value
● Improved working conditions for the operator by reduced noise level and less vibrations
● New zigzag setting device – easy adjustment of zigzag width with low force
● Easy stitch length setting – adjustment without lever by turn button
● New push button for back-tacking (CLASSIC) ensures better reliability, additionally attached needle positioning button.
● Use of incorporated mini motor and quick connection from the head to the motor (CLASSIC)
● New oil pan
