D869-280922

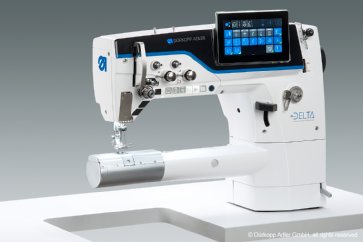

D869 - M-TYPE DELTA twin needle cylinder arm machines with vertical hook




Your specific advantages of the M-TYPE DELTA D869-280922:

• M-TYPE DELTA with programmable setting elements for reproducible sewing results
• Twin needle version with large, two-piece vertical hooks (L, bobbin diameter 26 mm)
• Slim cylinder arm (78,5 mm diameter) for tubular or difficult to access sewing applications
• Wide range of sewing equipment, devices and additional equipment for demanding sewing jobs
• Integrated sewing motor with network capable “DAC flex control” incl. operating panel Commander Delta ensures optimum functionality and maximum ease of use for “Industry 4.0 applications”
• Machine-specific software with intuitive user interface for convenient administration of sewing parameters 999 storage locations for machine settings (setup) or complex seam programs with 30 seams or sections max
• 999 storage locations for machine settings (setup) or complex seam programs with 30 seams or sections max
• Graphical visualisation of the process progress within the seam programs
• Programmable setting elements for stitch length adjustment, sewing foot stroke, sewing foot pressure and sewing foot lifting height and needle thread tension by means of integrated stepper motor
• Integrated material thickness detection (MTD) for optimization of sewing parameters during the sewing process
• Optimised working area due to enlarged clearance of 350 mm x 297 mm
• Reproducible handling due to electronically driven, programmable edge guides (optional)
• No compressed air required (except the use of additional equipment like needle cooling or remaining thread monitor)
• Easy and precise needle positioning due to electronical handwheel (scroll wheel)

Typical field of application
Reproducible functional seams and decorative seams in tubular workpieces.
