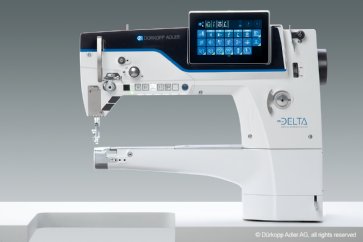

M-TYPE DELTA D669 – The all-rounder for tubular and difficult to access sewing applications


Your specific advantages of the M-TYPE DELTA D669:
• M-TYPE DELTA with programmable setting elements for reproducible sewing results
• Single needle version with large, three-piece horizontal hook (L, bobbin diameter 26 mm)
• Especially slim cylinder arm for tubular or difficult to access sewing applications
• Wide range of sewing equipment, devices and additional equipment for demanding sewing jobs
• Integrated sewing motor with network capable “DAC flex control” incl. operating panel Commander Delta ensures optimum functionality and maximum ease of use for “Industry 4.0 applications”
• Machine-specific software with intuitive user interface for convenient administration of sewing parameters 999 storage locations for machine settings (setup) or complex seam programs with 30 seams or sections max
• Graphical visualisation of the process progress within the seam programs
• Programmable setting elements for stitch length adjustment, sewing foot stroke, sewing foot pressure and sewing foot lifting height and needle thread tension by means of integrated stepper motor
• Integrated material thickness detection (MTD) for optimization of sewing parameters during the sewing process
• Optimised working area due to enlarged clearance of 350 mm x 297 mm
• Reproducible handling due to electronically driven, programmable edge guides (optional)
• No compressed air required (except the use of additional equipment like needle cooling or remaining thread monitor)
• Easy and precise needle positioning due to electronical handwheel (scroll wheel)

Typical field of application
Reproducible assembly and binding operations as well as decorative stitching in small leather goods, tubular workpieces and headrests
