867-392342-M "LG"

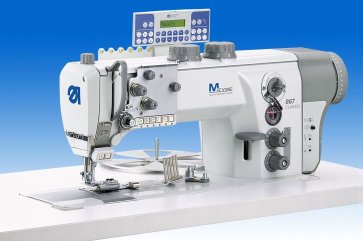

M-TYPE 867-M CLASSIC LG – the special machine with differentiable binding device


Your advantages
• Integrated direct drive with DAC classic control incl. operating panel OP1000
• Differentiable binding device for low-tension binding operations for applications with inner and outer radii
• Preselectable second stitch length for a perfect, uniform seam appearance of narrow inner and outer radii
• Large bobbin thread capacity due to XXL hook
• Great variety of standard binding attachments
• Equipment features corresponding to the M-TYPE CLASSIC version like thread trimmer, automatic backtacking, pneumatic sewing foot lift, integrated LED sewing lamp and maintenance indicator

Typical field of application
Binding operations in the automotive industry and in the field of technical textiles

Performance features
• Max. stitch length 12 mm
• Max. sewing speed 3,000 stitches/min.

DAC classic
The control “DAC classic” with the appertaining control panel OP1000 is especially adapted to the characteristics of the direct drive as well as to the large range of functions of the M-TYPE CLASSIC machines. This control leaves hardly anything to be desired with regard to functionality and ease of use.

The advantages:
• Precisely adapted parameters guarantee optimum functionality combined with maximum ease of use for every machine class.
• When the machine is put into operation, these machine-specific parameters are transferred to the control directly from the machine identification memory (machine ID) of the respective machine. The manual input of basic parameters or a manual selection of the machine class are completely avoided. The advantage is obvious: PLUG and PLAY
• A clearly arranged structure of parameters classified according to functions allows a user-friendly setting of application-specific values with the help of the appertaining control panel.
• Trouble-free data transfer (parameter or software updates) by means of DA storage dongle
• An independent power supply unit (230V / 24V) for the connection of a sewing light is included.
