D867-190929

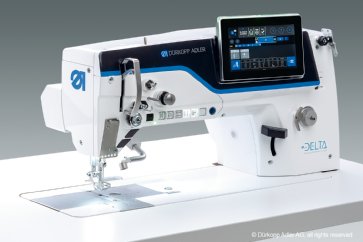

M-TYPE D867 DELTA – Latest control technology for precise and repeatable sewing processes
Your specific advantages of the M-TYPE DELTA D867-190929:
• M-TYPE DELTA with programmable setting elements for reproducible sewing results
• Single needle version with large, two-piece vertical hook (XL, bobbin diameter 28 mm)
• Long thread trimmer (remaining thread length of approx.. 32 mm)
• Wide range of sewing equipment, devices and additional equipment for demanding sewing jobs
• Integrated sewing motor with network capable “DAC flex control” incl. operating panel
Commander Delta ensures optimum functionality and maximum ease of use for “Industry 4.0
applications”
• Machine-specific software with intuitive user interface for convenient administration of
sewing parameters 999 storage locations for machine settings (setup) or complex seam programs with
30 seams or sections max
• Graphical visualisation of the process progress within the seam programs
• Programmable setting elements for stitch length adjustment, sewing foot stroke, sewing foot
pressure and sewing foot lifting height and needle thread tension by means of integrated stepper
motor
• Integrated material thickness detection (MTD) for optimization of sewing parameters during
the sewing process
• Optimised working area due to enlarged clearance of 350 mm x 297 mm
• Reproducible handling due to electronically driven, programmable edge guides (optional)
• No compressed air required (except the use of additional equipment like needle cooling or
remaining thread monitor)
• Easy and precise needle positioning due to electronical handwheel (scroll wheel)
Typical field of application
Reproducible assembly and topstitching seams for leather applications
