867-190146

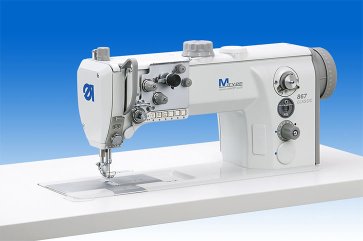

M-TYPE 867 CLASSIC Silverline – top stitching seams with “neat seam beginning”
Optimised functions for the car seat production:
• No manual trimming of remaining threads required. The short thread trimmer
guarantees a remaining thread length of approx. 5 mm only.
• The additional function “neat seam beginning” allows an optically perfect seam beginning
with minimized tread quantity on the underside of the work piece
• Reduced quality controls during the production process due to short remaining threads and
neat seam beginning
• The process reliability required in the car seat production is guaranteed – all adjusting
elements can be fixed mechanically thus eliminating unintentional alterations by the operators
(optional).
Your advantages in production:
• Short thread trimmer with a remaining thread length of approx. 5 mm only
• High process reliability due to fixable adjusting elements (optional)
• Increased productivity by means of the XXL-hook with maximum bobbin capacity (70% more
bobbin capacity than the standard hook)
• Neat seam beginning by standard thread clamping device
• Stitch length limited to 9 mm (max. 12 mm)
• Central oil wick lubrication (minimum lubricating system)
• Thread sizes up to Nm 15/3
• High production performance with a sewing speed of up to 3.400 stitches/min.
Advantages for the operator:
• Excellent view on the sewing area
• Integrated LED sewing lamp (optional)
• Low noise level
• Integrated keypad with favourite key
• Max. sewing foot lift 20 mm
• Max. sewing foot stroke 9 mm
