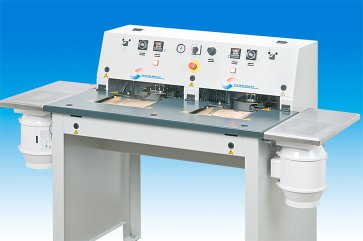

906-TUP-BRI

Pocket creaser for pre-folding of





• Pocket cuts are creased as per customerspecific shape – the pocket is permanently fixed by exposure to temperature and pressure
• For light- to medium-weight jeans and Stretch materials from 8 oz to 14 oz. with Cotton 80%, polyester 12% and elastane up to 8%
• Optional a deposit tray (9499 000005) or a deposit tray with cooling station (9499 000006) can be ordered
• The cooling station extracts the heat of the pocket for a better preservation of the fold (especially recommended for fabrics with more than 5% elastane)
• Semi-finished sets of parts for the self-manufacture of the creasing set optionally available
• Very short heating times
• High productivity by pressing 2 keys once with both hands for creasing and pre-folding hem corners
• Conversion time for changes of pocket shape approx. 10 minutes

Typical field of application

Creasing and pressing of jeans pockets

Performance features

approx. 2,500 jeans pockets / 480’
