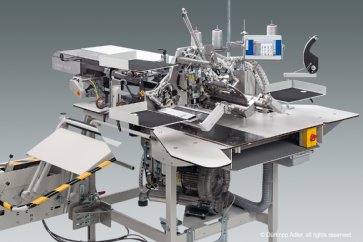

756 F
Sewing units with CNC stepper motor technology for runstitching straight and angled pocket openings with fully automatic feeding and pattern matching device
The 756 F is perfection in consummation. The sewing unit achieves a so far unrivaled
flexibility by an almost completely programmable machine setting. The sewing unit comes standard
with a fully automatic feeding of piping strips, a feeding of additional parts and a fully
automatic matching device for checkered or striped flaps. Optionally it can be equipped with an
automatic cutting system for piping ends.
Your new Advantages:
-
Unique programmable material adjustment for easy setting of different material thicknesses by the operator – pocket materials of different thickness can be processed one after the other without mechanical adjustments
-
New piping cutting technology: Simultaneous, time-saving cutting of the piping ends using stepper motor technology – perfect incisions even in sensitive materials
-
Perfect folder system: improved material passage – simple, fast and low-cost exchange of folder and sole inserts
-
Programmable pattern correction in transverse direction
-
Mechanically adjustable flap guide for quality control – for perfect flap widths during pattern matching
-
Improved loading devices for easy loading of the piping strips on the piping tray
-
Needle distances selectable 10 + 12 mm – quick change of needle distance faster, more convenient and cheaper
Your known Advantages:
-
Programmable needle feed for difficult-to-feed materials
-
Special "knitwear mode" for low-tension sewing of piped pockets
-
Programmable laser marking lights in longitudinal and transverse direction
-
Stepper motor controlled transport clamp adjustment with material spreading – for e.g. lining or stretch material
-
Programmable transport clamp pressure for different materials such as lining processing with fleece strips and stretch materials
-
Stepper motor controlled center knife drive with extended flexibility in material use due to adjustable knife stroke height – low knife wear
-
Highest precision for corner cuts through automatic or optional multifunctional corner knife station
-
Pocket lengths selectable from 25 – 180 mm
-
Second thread tension ensures optimum stitch formation in the seam and in the bartack
Performance examples in 480 minutes:
Patterned straight or slanted single or double welt pockets with flap in jackets (Additional
parts: flap, piping strip, pocket bag attached)
approx. 1,000 to 1,200 pockets
Unicoloured straight or slanted single or double welt pockets with flap in jackets (Additional
parts: flap, piping strip, pocket bag attached)
approx. 1,600 to 2,000 pockets
Comparison of Manual feeding vs. automatic feeding of parts
