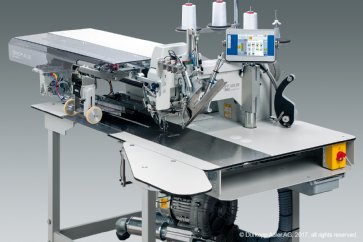

755 S

Sewing unit for runstitching of rectangular piped pockets, flap pockets and welt pockets





Your advantages:

• Modern, reliable and network-capable Dürkopp Adler control technology, with high-resolution touch panel OP7000

• Touch panel OP7000 with color graphic display for easy programming and fast access to all parameters - intuitive operating concept with freely configurable user interface

• Copy of machine parameters via USB stick

• Save the machine parameters in the machine ID

• Safe and clean winding of the thread when spooling with integrated bobbin winder with winding aid

• Fast color changing possible by separately driven bobbin winder (Option)

• Stepper motor driven center blade drive with extended flexibility in material use due to increased material through-Low knife wear

• Maximum precision in the corner cuts due to easy-to-adjust corner knife station (option)

• Reduced bobbin change due to double bobbin volume with large vertical hook (d = 26mm)

• High safety sewing thanks to needle thread and bobbin monitor in the standard of the sewing unit

• Flap scanning via photocell

• Positioning aid by means of 3 laser marking lights in the standard of the machine, optionally can be upgraded by 1 laser marker light

• Processing of trousers pockets with extra wide piping strips up to 60mm left, with integrated blowing device (option)for the erection of the extra wide piping

• Pocket sizes from 20 - 240mm selectable (depending on sewing equipment)

• Needle distances from 4.8 - 30 mm can be selected, shortest conversion time from one to the other needle distance (30 min.)

• 15 languages selectable

• Large arm passage to the right of the needle - 335mm
