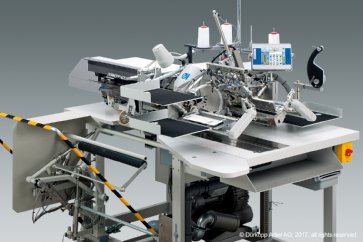

745-35-10 B

The efficient one – for fully overlapped working method





For straight and optionally also for slanted piped pockets, flap pockets and welt pockets with automatic feeding of piping strips. Optionally with fully automatic flap slant recognition. Optionally with automatic feeding of additional parts. Optionally with automatic incision of the piping ends.

• Automatic feeding of piping (as per stripes), flap and pocket bag
• High output due to fully overlapped working method
• Fully automatic corner knife adjustment with automatic adaption of the seam offset by means of flap slant recognition
• Automatic incision of piping ends
• Large colour graphic display with individually adaptable user interface
• Needle thread and bobbin thread monitor for optimum safety while sewing

Options

• Flip stackers, tape feeders, suction devices, material rests etc. are available for optimizing the workplace

The sewing unit 745-35-10 B has been upgraded as follows:

•  Touch screen OP7000 with colour graphic display for easy programming and quick access to all Parameters – intuitive operating concept with freely designable    user interface for functions
• All pocket parameters are freely programmable
• High-quality control system with DAC comfort and Machine-ID
• Machine parameters can be copied by USB flash drive
• Saving of machine parameters in machine-ID
• Transport clamp K35 for an increased sewing quality due to very simple adaption to the application

Typical field of application

•  e.g. Jacket pockets, trouser pockets, lining pockets

Performance features

• 1,500 - 2,000 pockets / 480'  *

* = depending on pocket shape and number of additional parts
