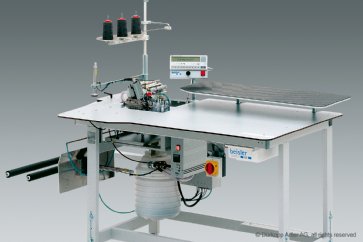

1222-6

Single-head overlock units for serging of long and short seams





The sewing units 1220-6, 1221-6, 1222-6, and 1225-6 offers excellent and flexible solutions for the rational serging of long and short skirt and trouser parts. On all sewing Units the serging of short and long seams, such as the seat and fly curve and the trousers hem, can be combined in the program run with the serging of side seams and inseams.

The sewing unit 1222-6 with a seam width of 9.6 mm is excellently suitable for serging of Jeans parts.

Your advantages:

• Constant sewing results without material waste
• Constant seam widths due to precise cutting edge guide
• High sewing speed for increased productivity
• High productivity through overlapped working method
• Short training times by easy operation
• Application flexibility through programming of long and short seams in combination – overlocking the seat and fly curve and the trousers hem can be integrated
• Very easy programming
• Use of long-life, electro pneumatic valves (regionally sourcing – e.g. Asia)
• Use of standard cylinders (regionally sourcing – e.g. Asia)

Performance examples :

• Serging front and back trousers (8 seams per trousers) = 700 – 800 trousers / 480 min.
• Serging front and back trousers with seat curve (10 seams per trousers) = 640 – 740 trousers / 480 min.
