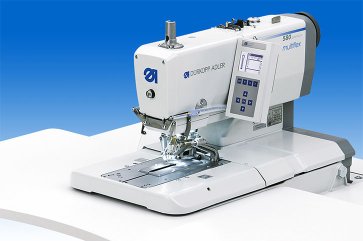

581-312

Automatic 2-thread chainstitch eyelet buttonholer with innovative Multiflex cutting system





• Short thread trimmer for needle thread and looper thread, without gimp thread
• Different buttonhole shapes and lengths without change of cutting tools
• Large display with graphical user's guidance for convenient and easy programming of all buttonhole parameters
• Excellent stitch formation due to state-of-the-art sewing kinematics
• Electronically controlled needle thread tension guarantees perfect buttonholes
• Cutting force optimisation maximizes the life time of the buttonhole knives
• Integrated sewing lamp for perfect lighting of the sewing area
• Semi-submerged machine head for optimum view and fatigue-free sitting position
• Cutting befor or after sewing*

Typical field of application

• Buttonholes of every shape and length without change of cutting tools

Performance features

• Cutting length 9 - 36 mm*
• Diameter of round eyelets 1 - 5 mm*
• Max. sewing speed 2,200 stitches/min.

* = according to sewing equipment
