175-141621

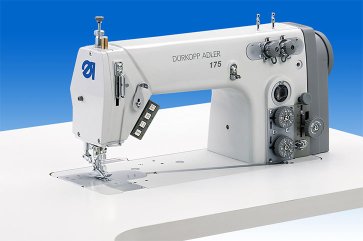

Single-needle 2-thread chainstitch machine with bottom feed and differential foot top feed




  • Energy-saving, intergrated positioning drive
  • Soft stitch formation, no tension puckering
  • Optimum stitch formation due to automatic adaption of the bobbin thread quantity
  • Tight but elastic seams
  • Constant or partial fullness in the upper material ply
  • A preset fullness can be called up via push-button
  • Reproducible adjustment of stitch length and top feed length via dials
  • Automatic sewing foot lift and thread trimming
  • Condensed stitches for securing the seam beginning and the seam end

Typical field of application

  • Seams with or without fullness in the upper material ply in light-weight to medium-weight material

Performance features

  • Max. top feed length 8 mm
  • Max. stitch lenght 4 mm
  • Max. sewing speed 5.000 stitches/min.
